What Are Electric Gate Photocells And What’s Their Function?

Posted by Steve Jones 09/04/2018 9 Comment(s) Gate Automation Safety,

Automatic gates open and close when instructed by a variety of methods. Remote transmitters are carried by gate owners to operate their gates at the push of a button on the remote. Access control systems use gate release buttons inside the property to open the gates. And keypads or proximity readers installed outside the gates allow access for anyone with the code or programmed proximity tag.



It is also possible to bury a loop cable in the driveway inside the gates that operates the gates when a vehicle passes over it.

Under normal conditions, automatic gates open when instructed to do so and then close after a certain period of time.



However, moving gates should not be allowed to hit anything or anyone, so a way to tell them that something is in their path is needed. This is what safety photocells are for.

Photocells come in pairs and function by sending an infrared beam from one to the other. If this beam is broken, the photocells send a signal to the gate automation control panel. This signal usually tells the gates to stop and to fully open.





A Typical Swing Gate Automation Photocell Set Up



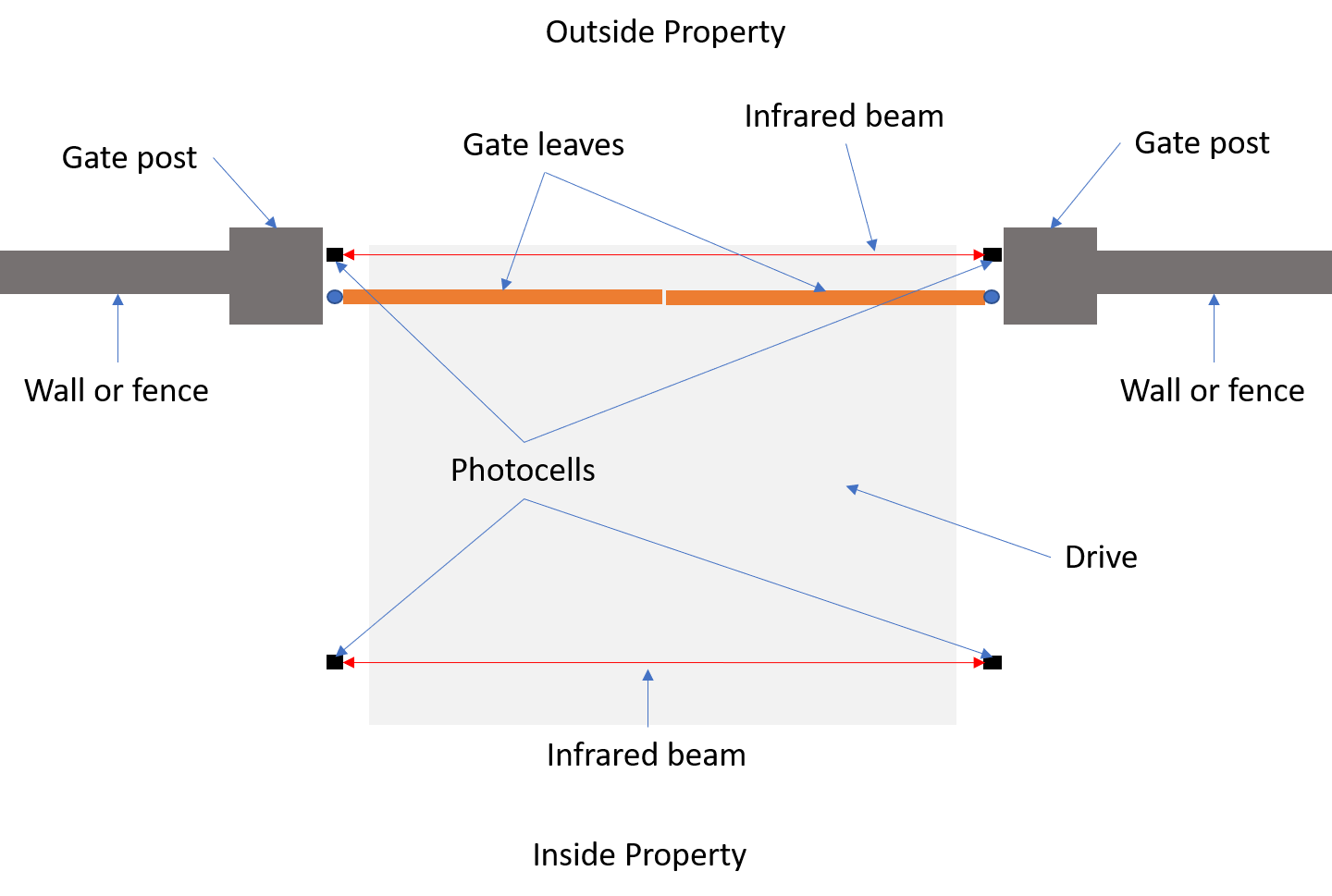

With swing gates, a pair of photocells should be placed just outside the gates (assuming they open inward) on opposite sides of the drive and facing each other. A second pair should be placed inside the gates across the driveway but just outside the reach of the fully open gates.

A Typical Swing Gate Automation Photocell Set Up

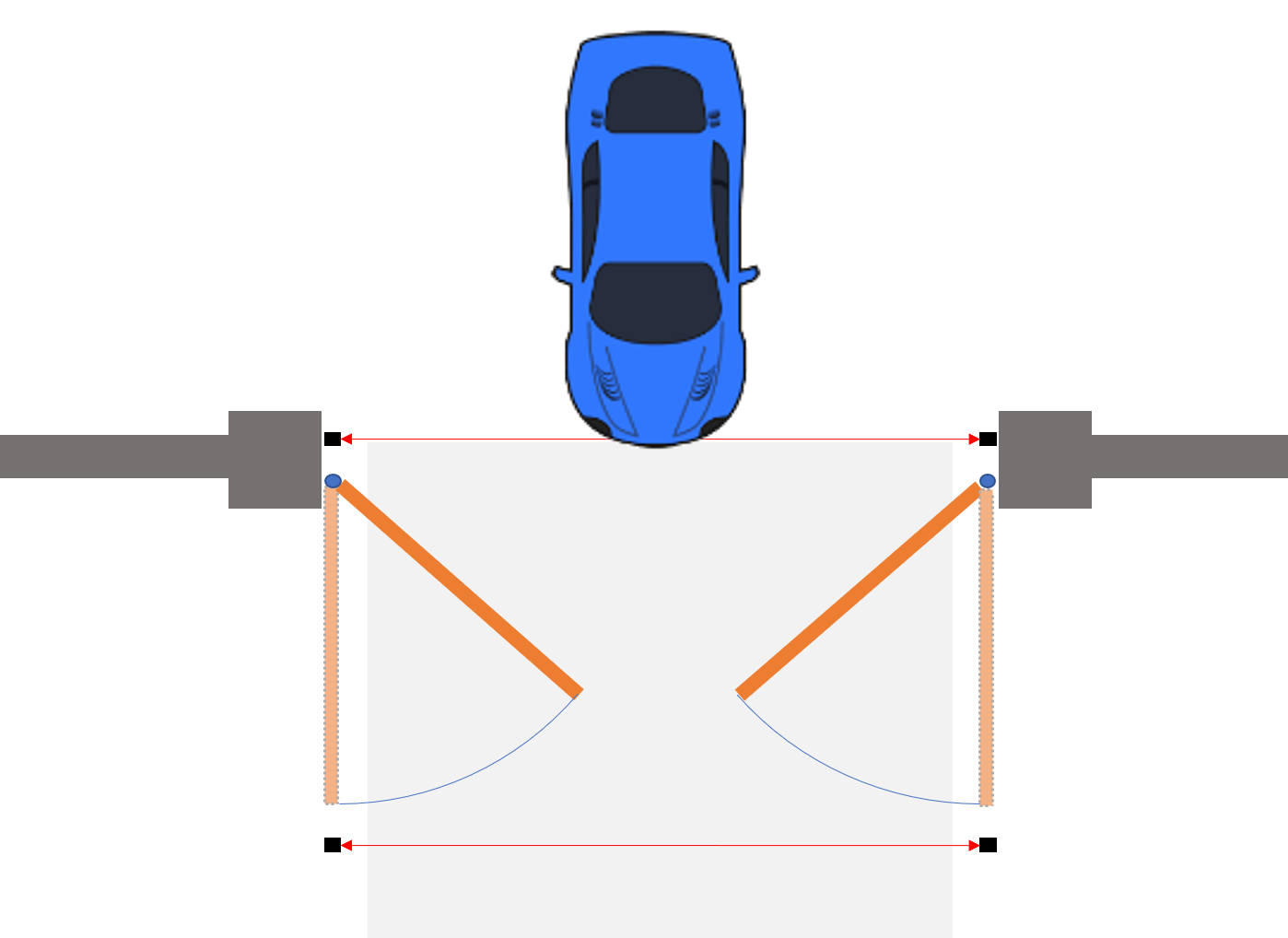

Arriving at Automatic Swing Gates from the Outside



If gates are closing and a vehicle arrives from the outside, the outside photocell beams is broken, and the gate stops closing and reverses to open the gates and prevent them hitting the vehicle.



Photocells for safe gate automation

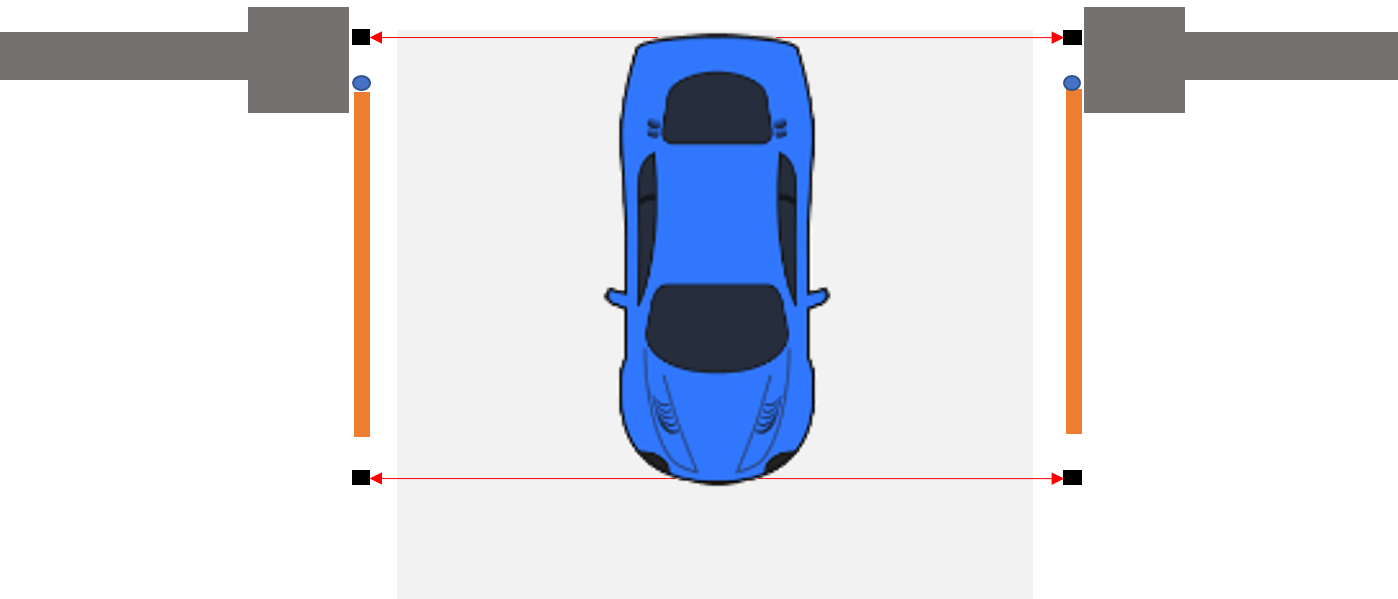

A vehicle that has passed through the outside photocells then breaks the inside photocells’ beam and prevents the gates closing until it has passed through and the beam is re-established. Then, after the appropriate time delay, the gates will close.





Gate automation safety photocells







Arriving at Automated Swing Gates from the Inside



Vehicles approaching open gates from the inside as the gates are closing will break the inside photocell beam and stop the gates closing. They reverse and open fully allowing the vehicle to pass through.





Gate automation photocells

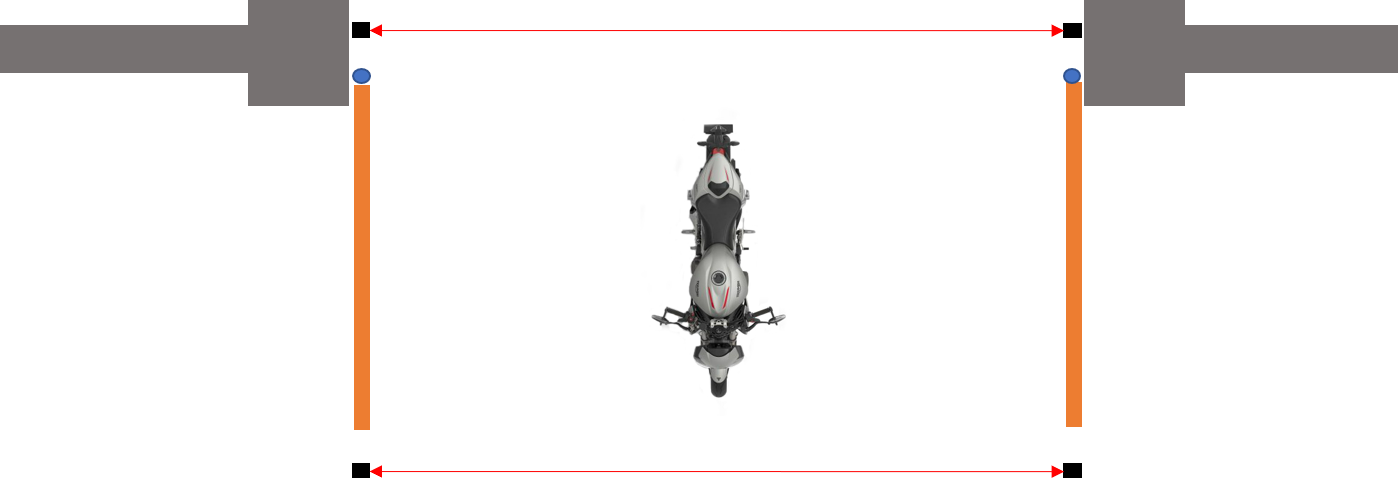

Smaller Vehicles and Pedestrians



The time delay set to keep gates open after a beam is re-established is important where slow moving smaller vehicles or pedestrians pass through gates. This is because at some point the person or vehicle will not be breaking either the inside or outside beams. Where long gates such as a single 5-bar gate is installed, even a car can be in a position where it is breaking neither beam.





photocells for gate automation



The potential danger this situation creates can be reduced by adding safety edges to the gates. The gates will then stop and reverse if they close on an object between the inside and outside photocell beams. Installing 24V gate motors with obstacle detection will achieve the same result. However, this does involve contact with the gates.



One alternative is to install latching relays which latch the gate open when one set of photocells’ beams is interrupted and only release the open latch command when the relay on the second set of photocells is activated by breaking their beam.



Once the vehicle or pedestrian breaks the inside beam, the gates will be kept open until they pass through and the beam is no longer broken.



It may be considered obvious that any delay between unbroken photocell beams will cause the gates to close. However, while the homeowners can be educated to this risk, visitors who have no experience with automatic gates will not be aware of the possible dangers and the workings of automatic gates. Consequently, it is always vital to reduce any possible risk with safety equipment or by preventing access to danger areas.



One final solution for removing pedestrian access to possible risk areas in gates designed for vehicle access is facilitated by the installation of a separate pedestrian gate. This can be locked with an electric lock that can be released through the access control system used for the automatic gates, but the gate itself will be manually opened and closed.





Sliding Automatic Gates



Automated sliding gates slide along the property boundary when opening. Ideally, photocells should be installed along the full travel path of sliding gate.



There is a possibility of shearing and trapping injuries where the gate slides against the edges of walls and posts or across open railings. This means that safety photocells on the inside of the gate must accommodate the full travel of the gates to stop the gates moving if it is possible for anyone to enter the danger area.

Sliding gates safety photocells

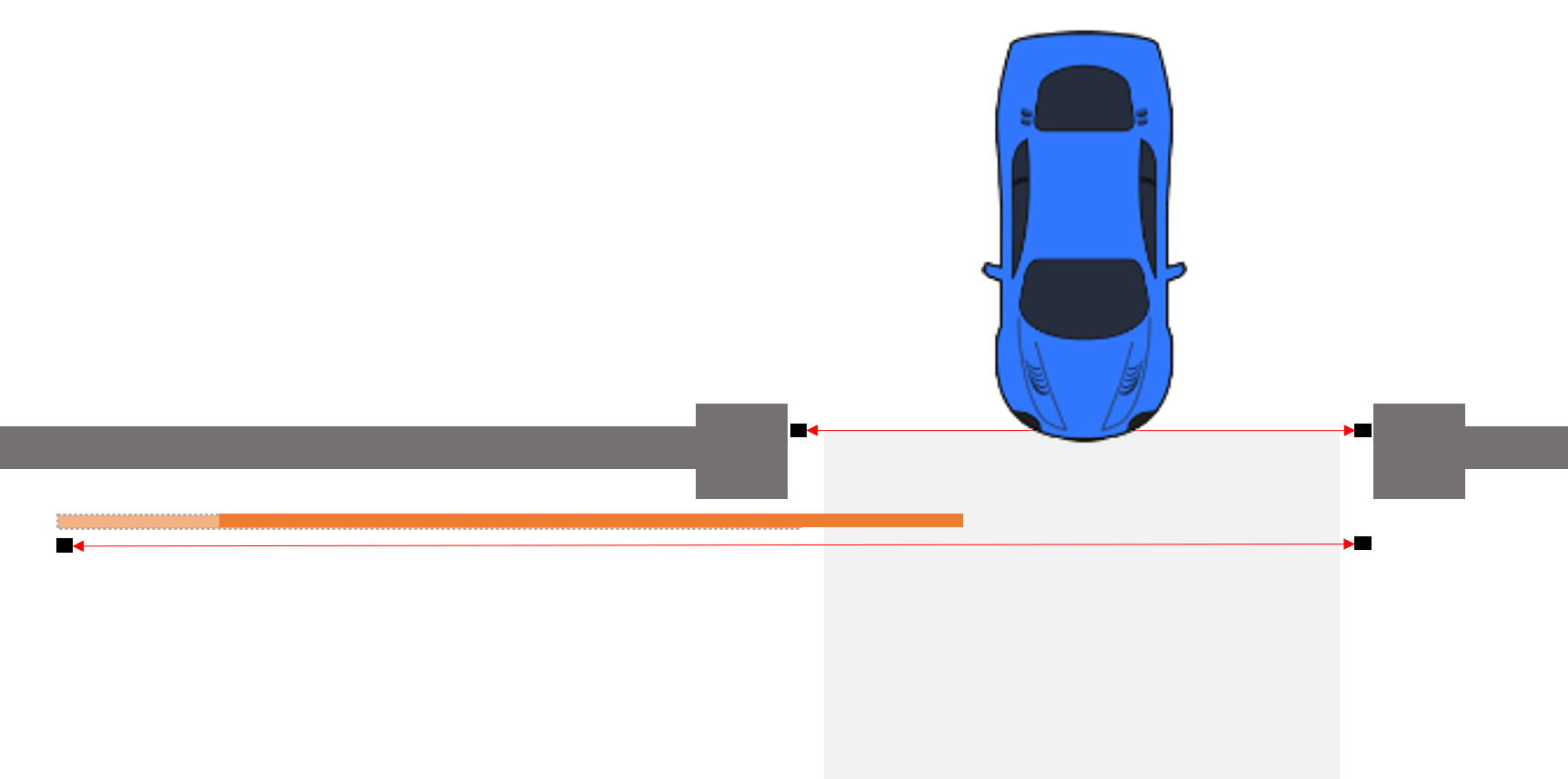

By installing a pair of photocells just outside the gates, anything that breaks their beam when the gates are closing will stop and open the gates.



Safety photocells for sliding gates

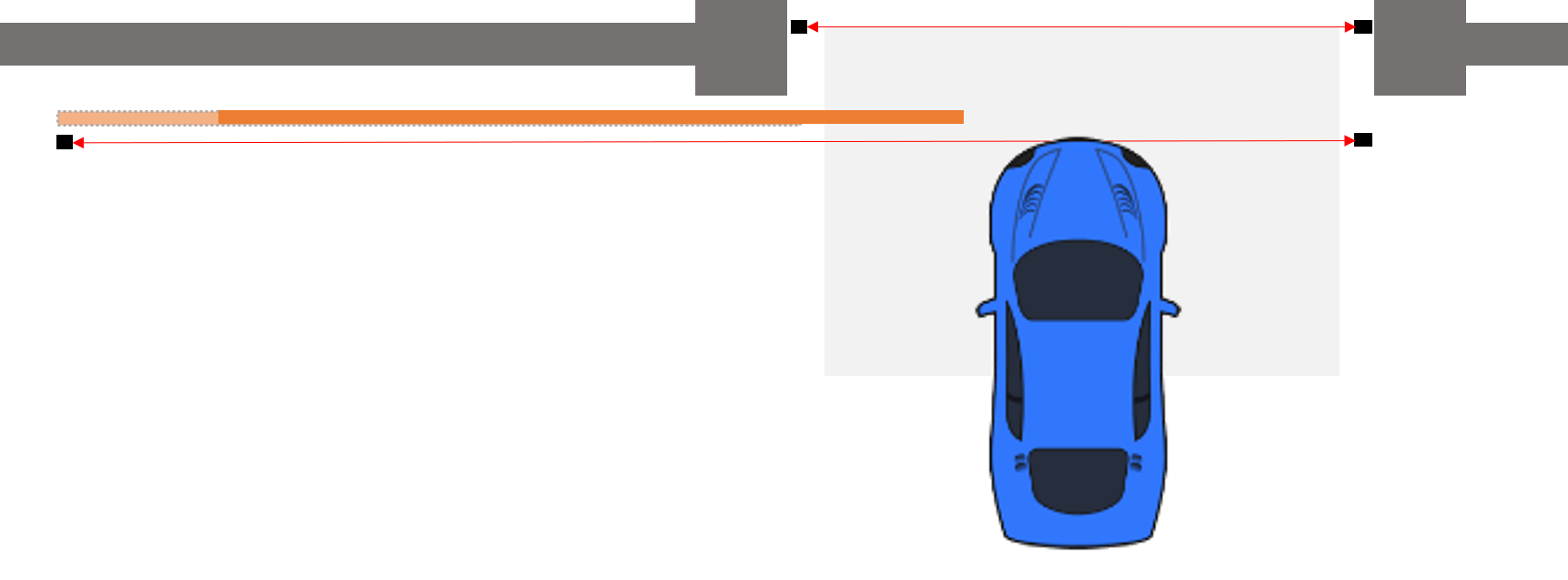

The photocells installed inside the gates stop and open closing gates when anything breaks their beam.







photocells on automatic sliding gates





Can Photocells be used for Egress?



As gates stop closing and open when the beam inside the gates is broken, photocells could be considered as a cheap option for egress control. However, this is not recommended, as it is possible for animals including pets or birds to break the inside beam and cause gates to open at undesirable times. Therefore, safety photocells should be used as just that, safety devices. Their role is to prevent gates from closing onto people or vehicles.



The egress function for anyone wishing to open gates and exit the property should be performed by alternative methods such as loop detectors or push to exit buttons.

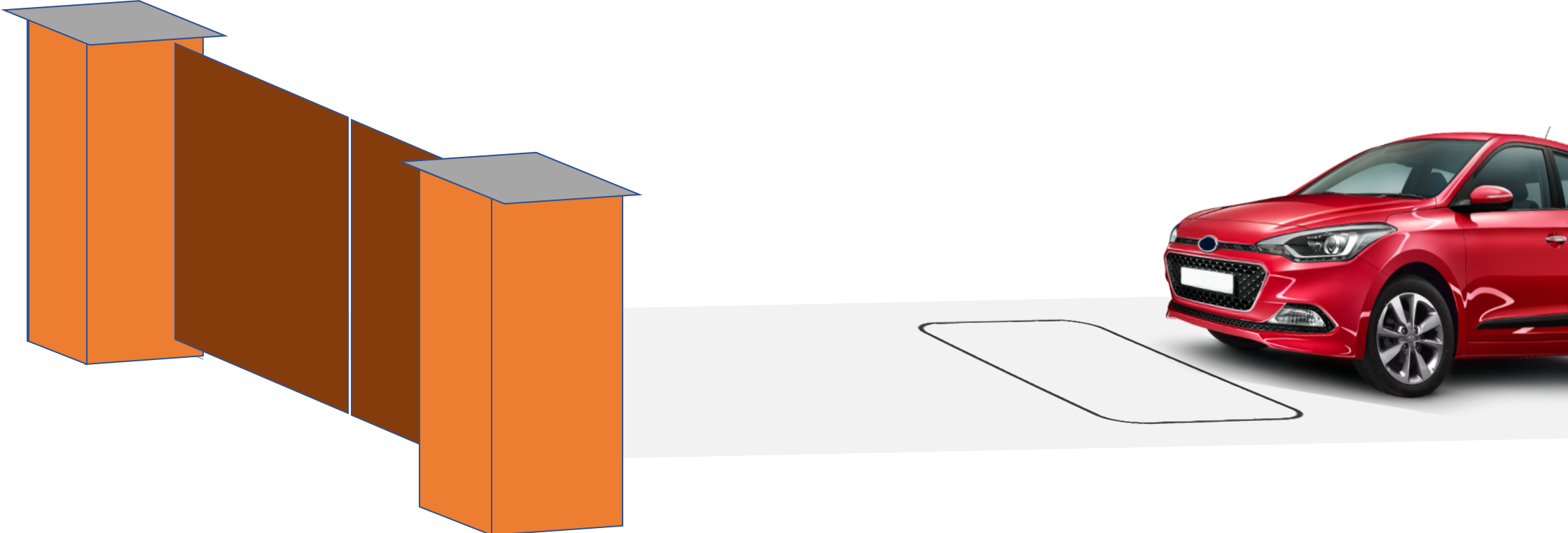

A loop detector comprises the detector itself and a loop of special cable. The cable is buried in the driveway and opens the gate via the loop detector when a vehicle passes over the loop. These are highly reliable and long-lived and represent one of the best ways to operate gates automatically from inside the gates. The only real downside is that a channel for the loop has to be cut in the driveway and filled with (usually) bitumen, or the loop is installed in the foundation of a new driveway.







Loop detector for egress

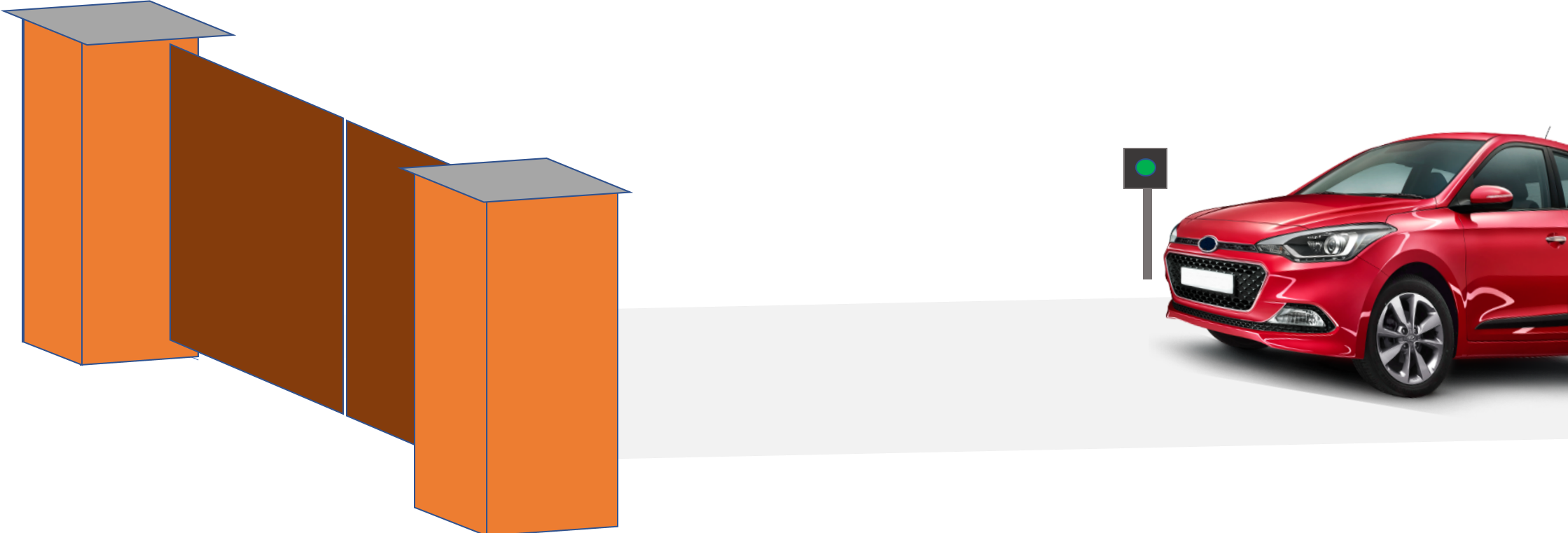

An egress button is placed next to the drive inside the gates (sufficiently far back from swing gates to allow them to fully open) and is simply pushed to open the gates and allow anyone the leave the property. It is essential that egress buttons are not positioned near enough to the gate that it is possible to reach through the gates to operate the push to open button. This is extremely dangerous and there have been significant injury and death caused to people trapped by opening gates they have opened by reaching through the gates to push the release button.





Sliding automatic gate exit push button



Different Types of Photocells



The most common combination of two photocells is a transmitter and receiver. The first emits the infrared beam and the second detects its presence. Alternatives include photocells that transmit an infrared beam at a mirror ‘receiver’ that reflects the beam back to the transmitter to also receive the signal. However, these should only be used for egress and not for safety.



When choosing photocells, transmitter and receiver pairs are preferable as direct sunlight and rain can affect the efficiency of reflector types.





Positioning Photocells



Photocells are a vital part of gate automation safety and their positioning determines a large part of how safe automatic gates are. In all cases, a safety audit determining the type of gates, their environment, gate use, frequency of operation and user knowledge must be carried out at the design stage. This will determine possible risk areas and the types of potential risk. Safety photocells can then be positioned to cover danger areas. Their primary role is to stop gates continuing to move dangerously when someone or something has entered a risk area and broken an infrared photocell beam.



Once danger areas have been identified and photocells positioned appropriately, the next most important part of photocell installation is their alignment. If the infrared beams emitted and received by a pair of photocells are not received or reflected accurately, the photocells are worthless.



Another important consideration with photocell installation, is their height off the ground. Various posts and columns are available for photocells and many position the photocells at a height of around 600mm. Any lower than this and the beams may pass beneath taller vehicles such as 4x4 pick-ups. Any higher and the beams may pass through the windows of low sports cars or completely over the top of convertibles with their tops down.



If you want any advice or further guidance on installing photocells, call Linkcare on 01895 232 626.



Tags: gate-safety

9 Comment(s)

Navin:
25/01/2019, 01:21:29 PM
Reply

Dear Sir/Madam, I had a sliding gate automated, but the problem is if you stand direct on the rail of the gate, the gate would not stop. The gate will stop when you're 6 inches away from the railing. Does it mean that the beam of the photocell is incorrectly set. Your kind advice would be greatly appreciated.

Gary:
09/02/2020, 11:37:59 PM

Should have a safety edge on the closing edge

Aloysius:
04/02/2020, 03:28:59 PM
Reply

Do you barrier training courses

jack:
24/04/2020, 06:38:00 AM
Reply

I Friggen love when i come across something and i go 'what the hell is that?' and then i find a great article that explains it! Thanks for the clear diagrams as well, helped to visualise it. Jack.

Mrs Luca:
29/05/2020, 11:46:30 PM
Reply

My sensors stopped working, if I fit new universal sensors,do they need reprogramming?

Simon:
03/06/2020, 09:14:04 AM

Hi Please call us on 01895232626 to discuss. It depends on what system you have. Analogue cells are unlikely to require reprogramming, and bus (2 wire) photocells may need it

Joseph:
12/10/2020, 02:43:22 PM
Reply

Why are reflective photocells not recommended for safety?

Simon:
12/10/2020, 03:06:47 PM

Hi, Because there is a small chance that the beam will reflect off the side of a vehicle and satisfy the receiver fooling the gateway that it is safe to close, potentially causing damage or injury. It is better to use a pair of safety beams where the transmitter operates on a battery so no wiring to the transmitter is required, but the beam is an active beam and will not have the same potential issue as a reflective beam.

Charles Joseph:
28/11/2020, 10:46:19 AM
Reply

Good day I installed a tau motor and there is only an infer red light on one what can be the issue checked back the wiring and it seems correct when I power the motor one photo cell comes on but the other blinks and cuts off the remote only works with the top button the yellow light keeps flashing but the motor does not move

Simon:
28/11/2020, 12:21:05 PM

Hi, Tau is one of the few brands we do not currently supply or support. I suggest you contact your supplier.

Stephen Quirke:
02/01/2021, 07:24:19 AM
Reply

Hi We have faac photo cells and they open the gate when beam is broken. This enables anyone to open gates or tree leaves blowing near the cells to cause the gates to open. Is there a solution so the cells only prevent gates from closing when necessary but do not just open when the beam is broken.

simon:
02/01/2021, 04:24:31 PM

Hi, You can change the function of the photocell from egress to safety, but it may need to have the connections changed both inside the photocell and inside the control panel. Depending on which system you have, some reprogramming may also be required. As this is a safety issue, I strongly suggest you employ a professional gate engineer to carry out the works for you.

Marie:
14/11/2022, 01:46:12 PM
Reply

If the infrared beams emitted and received by a pair of photocells are not received or reflected accurately, the photocells are worthless.

Robert:
19/07/2023, 07:06:05 PM
Reply

Hi, are the beams from the gate sensors eye safe if you look at them, strange question I know but the sort of thing my kids would do
