Genius



Genius gate autoation from Linkcare















The Genius gate automation range is briefly described below and includes 24Vdc and 230Vac sliding and swing gate kits and gate motors.

Genius swing and sliding gate automation kits, parts, accessories and motors are supplied in the UK by Linkcare Gate Automation.



Genius gate automation is suitable for residential and commercial applications.



The range of Genius auto gate options includes:





Genius Swing Gate Automation



Genius Articulated Arm Gate Motors

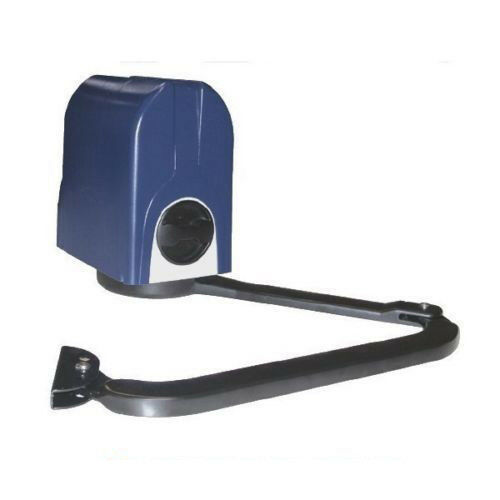

Genius Compas articulated arm swing gate automation motorGenius Compas



The Compas is a 24V articulated arm motor designed to operate swing gates up to a maximum width of 2.5m per gate leaf.

It is simple to install and use and has mechanical stops on opening and closing.

Safe use is provided through 24V obstacle detection.

When buying individual Compas motors, it’s important to note that the Compas 24C is the main motor that includes the electronic control card and the Compas 24 is the slave motor.

The motor is well suited to installation on wider gate pillars and posts.

The Compas is available as a kit or as single motors.

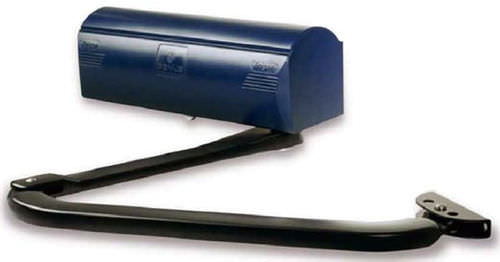

Genius TrigonGenius Trigon articulated arm swing gate automation motor


Genius Trigon 24Vdcor 230Vac articulated arm motors use long anti-shearing arms. Where there’s a longer distance between the gate hinge and the motor, the Trigon can be installed without having to cut notches out of the gate pillars. Maximum gate leaf length is 3m when using locking or 2m without electric gate locks.





Genius Rams and Linear Screw Gate Motors

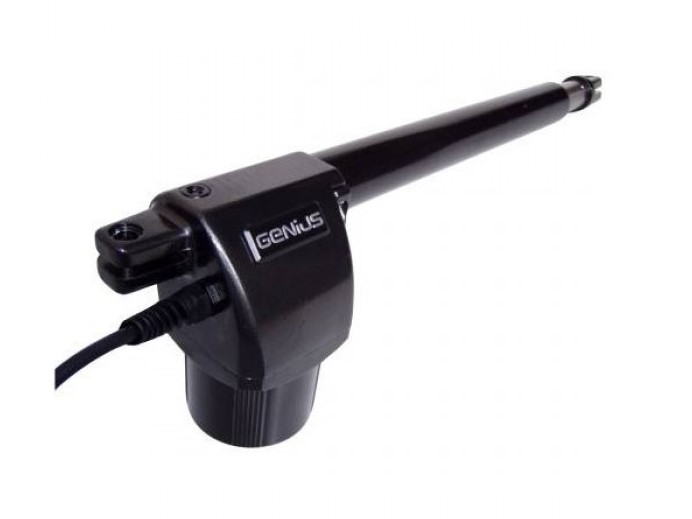

Genius Euro-Bat and G-Bat swing gate automation motor




Genius Euro-Bat and Genius G-Bat



The Genius Euro-Bat and Genius G-Bat swing gate motors are powerful liner screws capable of operating swing gates from 3m to 4m in length.

Both Euro-Bats and G-Bats are available in 24Vdc or 230Vac variants.

Both motors are also handed so you have to select right- or left-hand Euro-Bats and G-Bats if buying a single motor or a kit for a single gate.




Genius Mistral



Like the Euro-Bat and G-Bat motors, the Genius Mistral linear screw is available in 24Vdc and 230Vac versions. It also comes in variants for gates up to 3m or 4m long.

The main difference between the Mistral and the Euro- and G-Bats, is that the Mistral has a higher work cycle and is not handed so the same unit works on the left- or right-hand side. The mains versions have a maximum of 30% frequency of use at 200C for the Mistral 300 and 25% for the Mistral 400, while this rating is 100% for the 24V Mistral 324 and 75% for the Mistral 424.Genius Sirocco linear screw swing gate automation motor




Genius Sirocco



The Genius Sirocco linear screws come in 24Vdc and 230Vac versions for swing gates up to 2.5m.  Exposed parts are made from stainless steel to avoid corrosion. Installation on uneven posts is facilitated through floating aluminium mounting brackets and the motors are rated for intensive use.





Genius Underground Gate Motors







The Genius Diablo is one of the newest motors added to the Genius range. It is a slimline 24Vdc underground gate motor making it perfect for the most discrete installations. The Diablo can open gate leaves up to 2.5m long, through an arc of up to 1800.

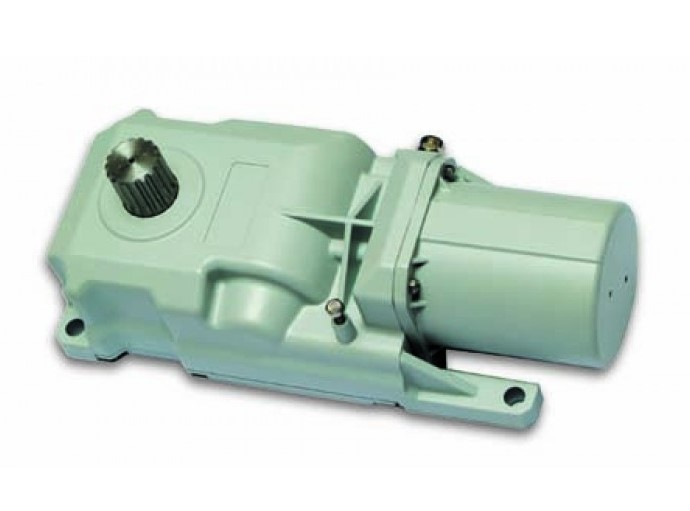

Genius RollerGenius Roller underground swing gate automation motor



Suitable for swing gates up to 3.5m meters long or a maximum weight of 500Kg, the Roller underground motor is discrete and tough. These limits are achievable when using electric gate locking. If no locks are used, the maximum safe length is reduced to 2m per leaf.

If possible in the space available around the gates, the standard opening angle of 1100 can be extended to either 1400 or a maximum of 1800 with optional motor accessories.

A coating of special polyester paint allows it to be used near the coast without suffering saltwater corrosion.







Genius Sliding Gate Automation

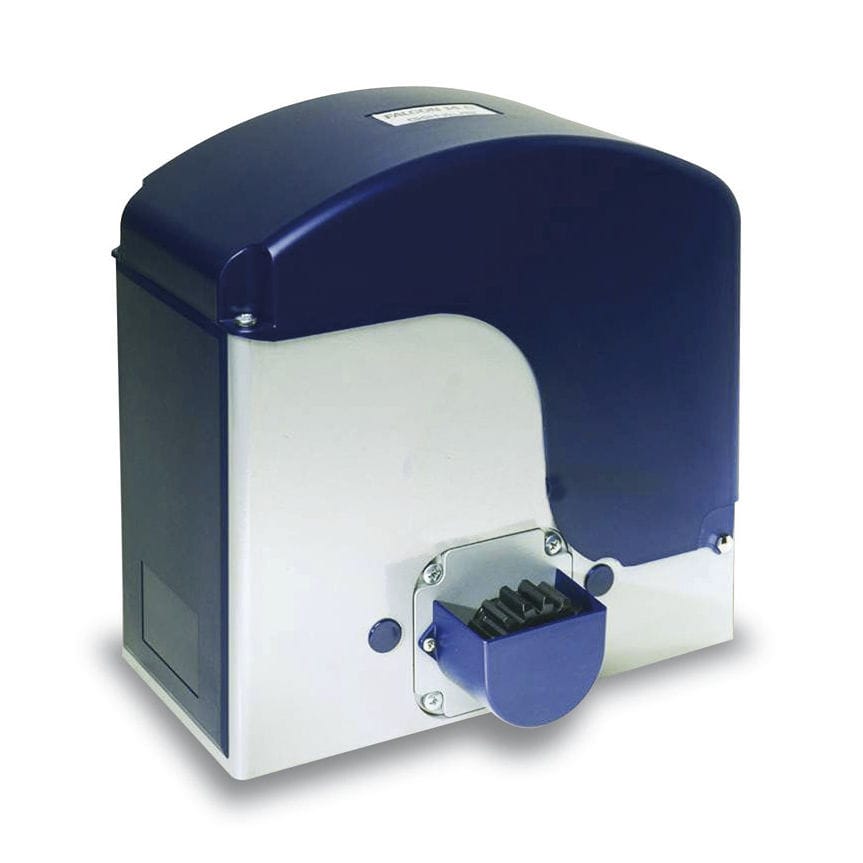

Genius Falcon sliding gate automation motor




Genius Falcon



The Falcon sliding gate motor comes in two 230Vac models that will handle sliding gates up to 1400Kg (M14C) or 2000Kg (M20C).

An integrated control board inside the protective ABS motor housing can be programmed via external buttons without having to remove the motor cover.

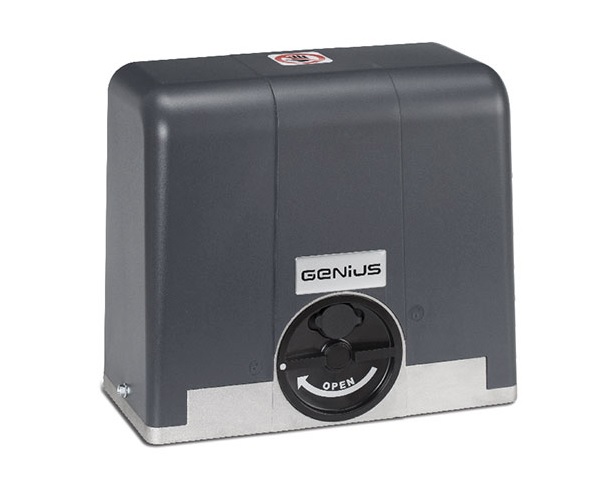

Genius Blizzard sliding gate automation motorGenius Blizzard



The Blizzard is the smaller sliding gate motor range from Genius. There are 230Vac models for sliding gates up to 500Kg and 900Kg. As with the Genius Falcon, the Blizzard’s controls can be programmed without having to remove the motor cover via external buttons and an external display.



Genius also provides high quality gate automation accessories and safety products plus barriers, bollards and garage door automation.

Here at Linkcare, we stock an extensive range of Genius gate automation equipment. From gate automation kits and motors to spare parts and accessories, all Genius products can be found with ease in our online store.



If you require technical support on any product in the Genius range, our helpful team of advisors can answer any queries you might have. To speak to a member of the Linkcare sales team, call us on 01895 232 626. Alternatively, you can email us, submit a contact form to our team or view our online product manuals for additional information on Genius gate automation equipment.



If you are a gate installers, why not register for a trade installer account with Linkcare to access trade discount pricing on all Genius gate automation equipment?
