Nice WalkyKit 24Vdc articulated arm bi-directional kit for swing gate up to 1.8m

Nice WalkyKit 24Vdc articulated arm bi-directional kit for swing gate up to 1.8m

Especially suited to gates in wood or PVC.

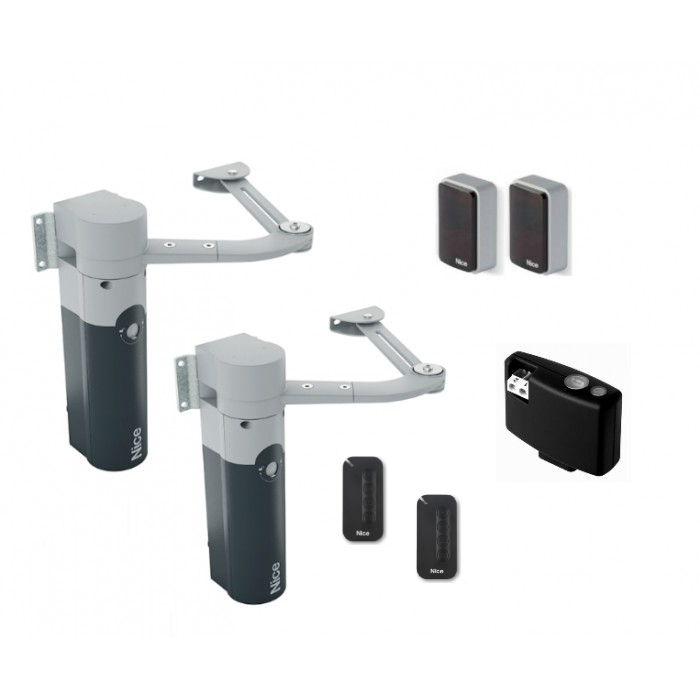

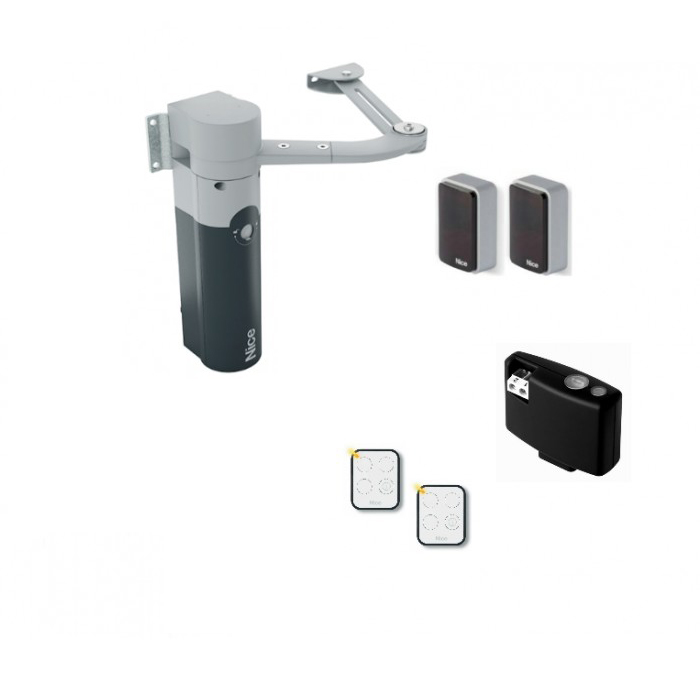

The Kit Contains:

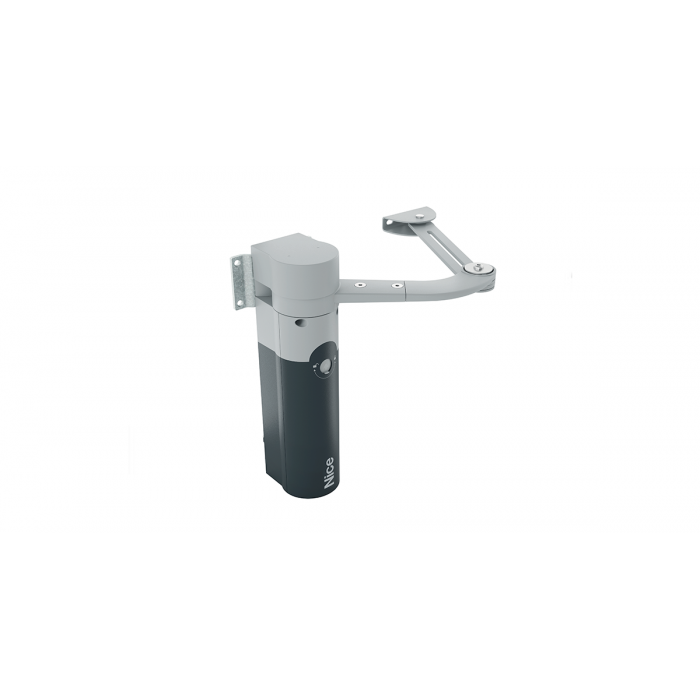

  • 1 x WL1024C surface mounted motor
  • 1 x WL1024 surface mounted motor (Double Kit)
  • 2 x ON3EBD 433.92MHz 3 channels bi-directional transmitter

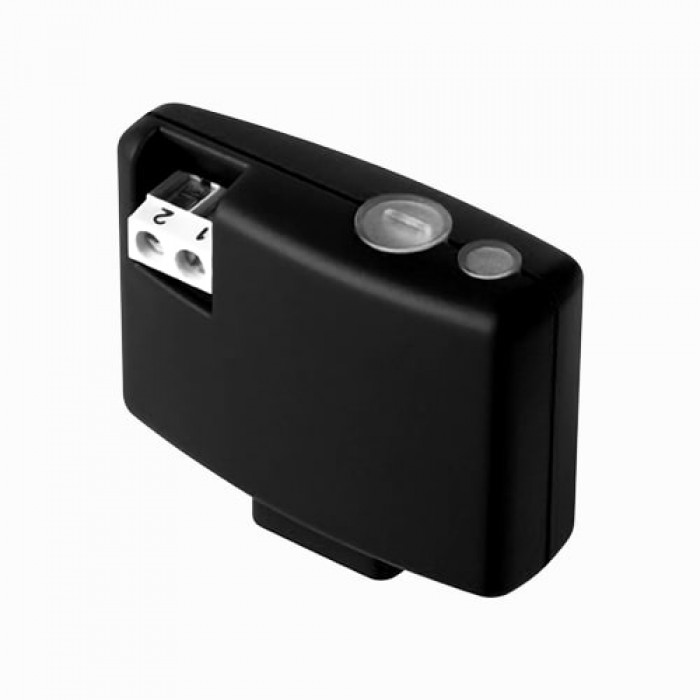

  • 1 x OXIBD bi-directional receiver
  • 1 x EPMB pair of photocell (Double Kit)

Ultra-compact: Ideal for pedestrian gates, recommended for small posts (width 8cm).

Safe: Irreversible motor and anti-shear arm with a built-in mechanical stop on closure (with the installation of the entire arm).

Practical: The articulated arm enables installation in specific conditions, such as in the presence of small walls or obstacles adjacent to the post.

Quick: No waiting in front of the gate, just 7 seconds to open or close (in optimal installation conditions, with reduced arm and 90-degree opening).

Convenient: Incorporable flashing LED indicator, with courtesy light function (WLT, optional); rapid motor release for manual movement of the gate.

Built-in control unit:

  • simple programming;
  • automatic memorization of limit switches on opening and closing with self-learning function;
  • automatic fault diagnostics;
  • programming of pause time;
  • pedestrian pass door;
  • deceleration on opening and closing;
  • provision for connection of the latest generation resistive sensitive edges.
No power cut: With the optional batteries (PS424) housed inside the gear motor.


Technical
Battery Backup Option Yes
BlueBus Yes
IP Rating 44
Max Gate Leaf Length 1.8m
Max Gate Weight 160Kg
Max Speed 1.5-2.2rpm
Motor Voltage 24Vdc
Solar Power Option Yes
Work Cycle 50
