Nice B-FAB5024-DKit 24Vdc underground kit for swing gates up to 5m
Reliable and resistant: motors made up of solid internal parts in metal and bronze alloy.
Simple to use: mechanical stop system on closure. Standard opening max. 110 degrees, optional opening 360 degrees.
The 24Vdc version with magnetic encoder and new control unit, Moonclever (MC824H), is equipped with BlueBUS technology.
Totally compatible with the previous Metro series.

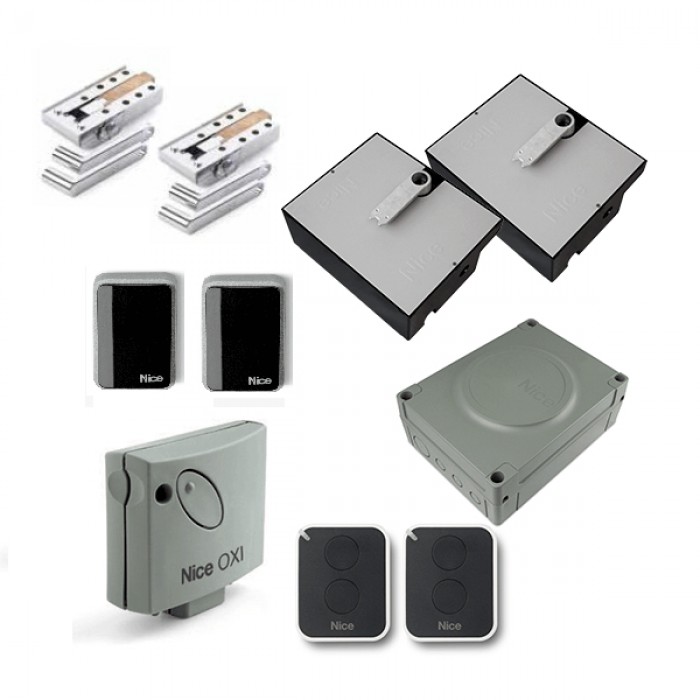

The kit contains:
- 2 x BFAB5024 24Vdc irreversible electromechanical gear motors, with the magnetic encoder.
- 2 x BFABBOX Chamfered Foundation Box with a mechanical stop on opening for Fab operators. With Cataphoresis paint finish. Highly resistant to corrosion.

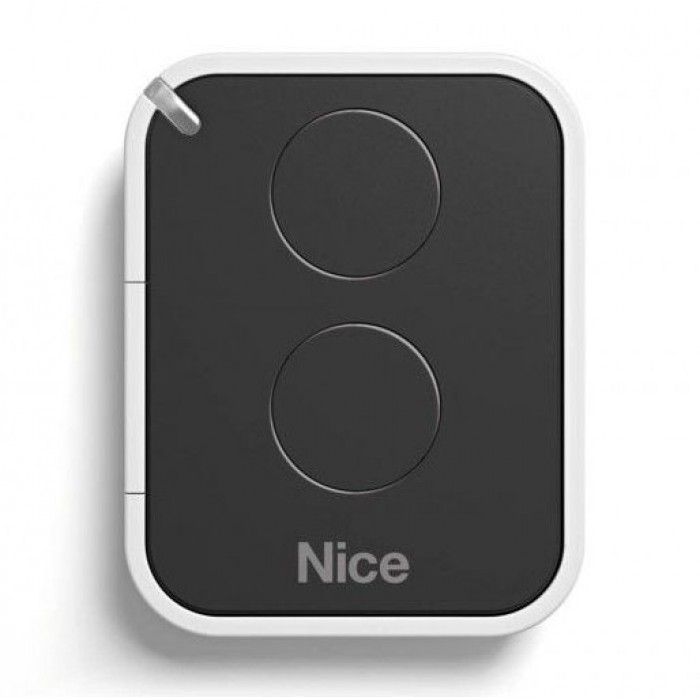

- 2 x ON2E transmitters 433.92 MHz, 2 channels.
- 1 x MC824H control unit for two motors, with 24Vdc encoder.
- 2 x EPMB outdoor photocells designed for connection via nice BlueBUS.
- 1 x OXI receiver of up to 4 channels, with connector, without a built-in transmitter.
- 1 x BMA3 Lever-type unlock system.
|Battery Backup Option||Yes|
|Max Gate Leaf Length||5.0m|
|Solar Power Option||Yes|
