Linkcare TPV Heavy Duty Door Hinge Guard

Linkcare TPV Heavy Duty Door Hinge Guard

Finger Keeper Industrial - TPV Heavy Duty Hinge Guard

PLEASE NOTE - Shipping for these items is determined by their length which incurs additional charges.

  • Designed for use with timber or steel hinged or pivoting doors
  • Opening angles up to 120 degrees
  • Minimum 35mm door thickness
  • Lengths: 2100mm and 2500mm
  • To be installed full height to prevent tampering or items being deposited behind the safety strip
  • Anodised aluminium carrier
  • Self-drilling screws
  • TPV safety strip - TPV has good environmental temperature performance (both low and high). Good resistance to chemicals and weathering.
  • Low compression set and flex fatigue resistance. TPV is significantly more UV stable (no fading or whitening) and has greater tear strength and tear resistance compared to EPDM.

The Finger entrapment indoors can result in serious injuries that have long-term effects such as amputation, or in less severe cases, require significant hospital treatment. Preventing such injuries is therefore important. Finger trap protection should be installed in all hinged or pivoted door situations whereby users can potentially get fingers caught between the door and the frame, all public areas including shops, hotels and sports centres should be reviewed for potential risks.
Areas of particular concern include:
Schools or child care centres. Children suffer a disproportionate number of finger entrapment injuries because of their lack of understanding of the dangers presented by doors, young children may put their fingers into the gap between a door and its frame without any awareness of the possible consequences.
Homes or residential facilities for the aged or disabled. Those, particularly with walking difficulties often use the door frame as a support when negotiating a doorway and inadvertently put fingers into the jamb, this is especially true of those doors fitted with door closers
Where automatic swing doors are fitted, it is a requirement of BS EN 16005 that finger trap protection be used at the hanging stile(s) of the doorset.

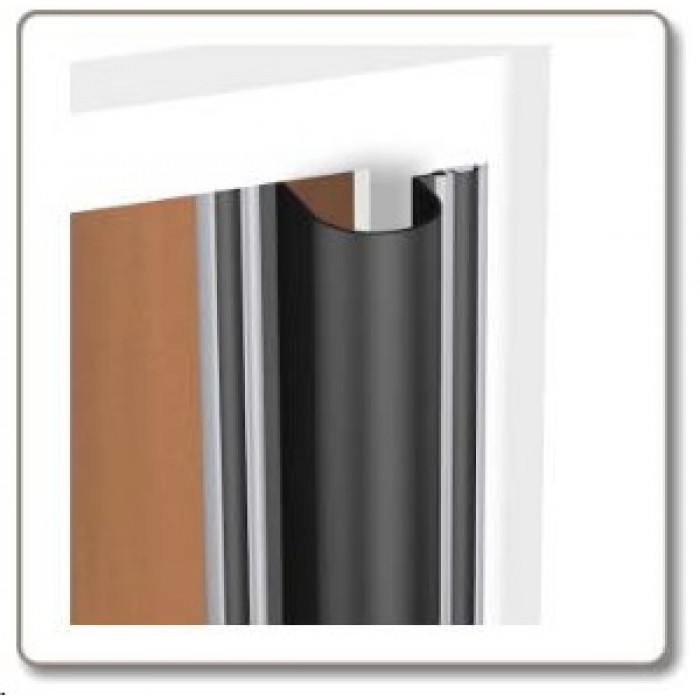

Finger keeper Industrial - TPV is a heavy duty finger-pinch protection device (anti-finger-trapping hinge guard) manufactured from Black TPV fitted in an Anodised aluminium carrier, that has black inserts to conceal the fixing screws.

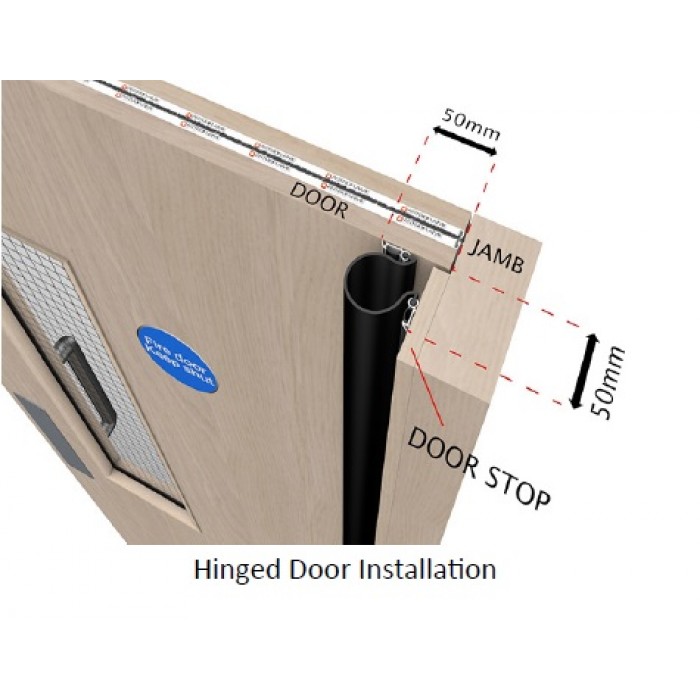

The TPV safety strip prevents fingers from being pinched on the hinge side of a door. It is fixed to the door and the jamb on the hinged side.
